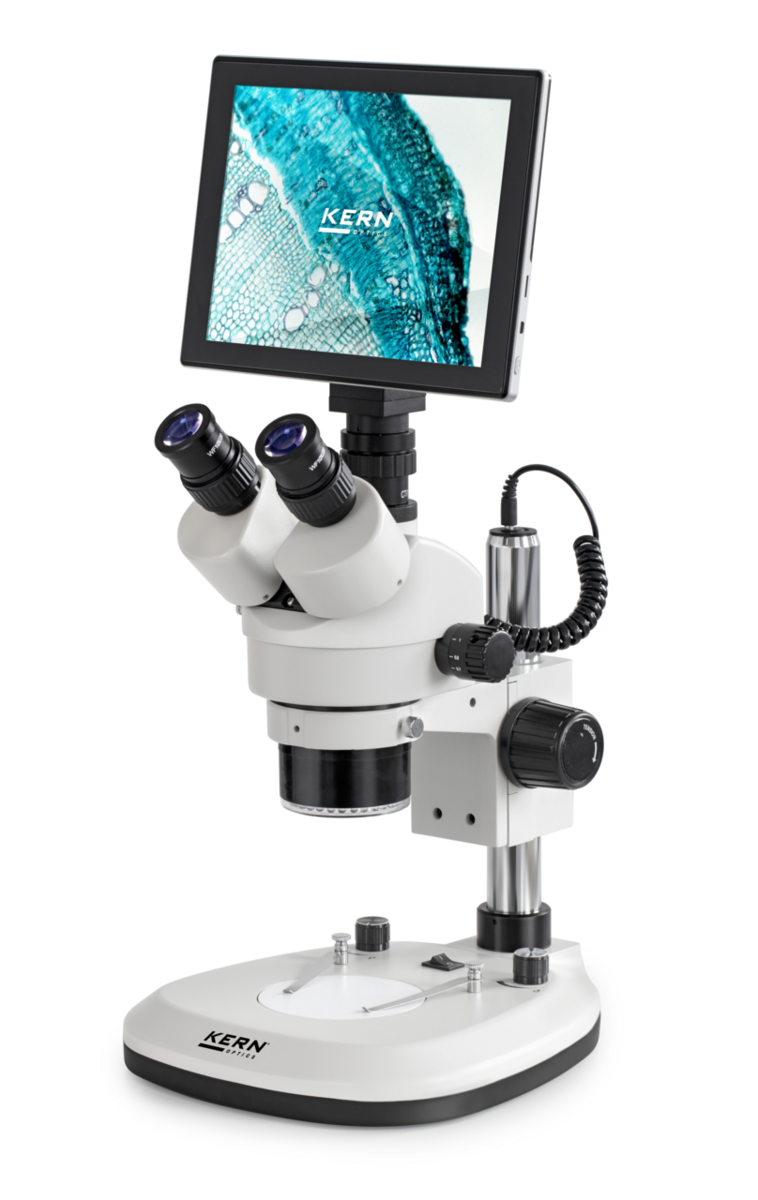

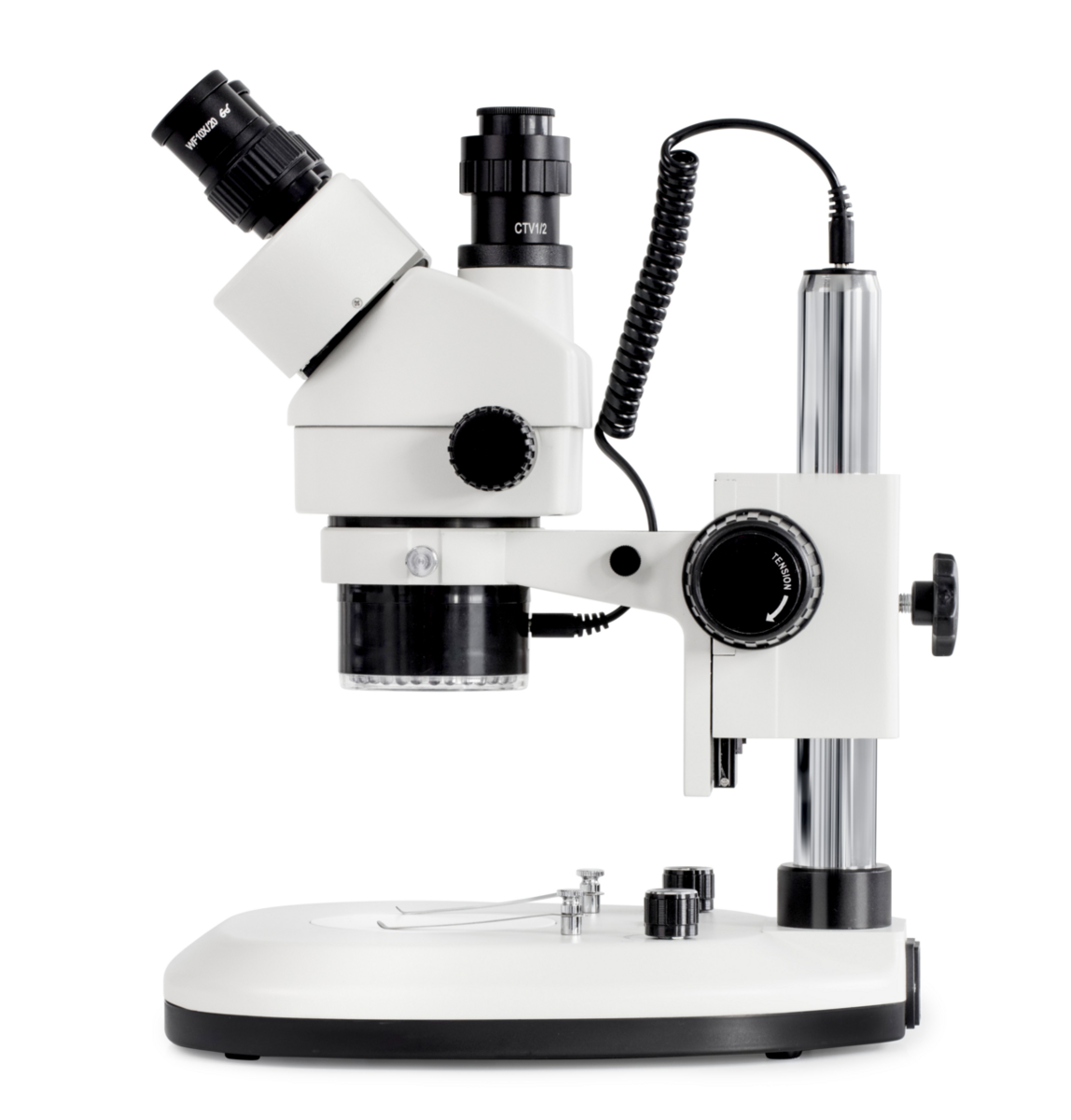

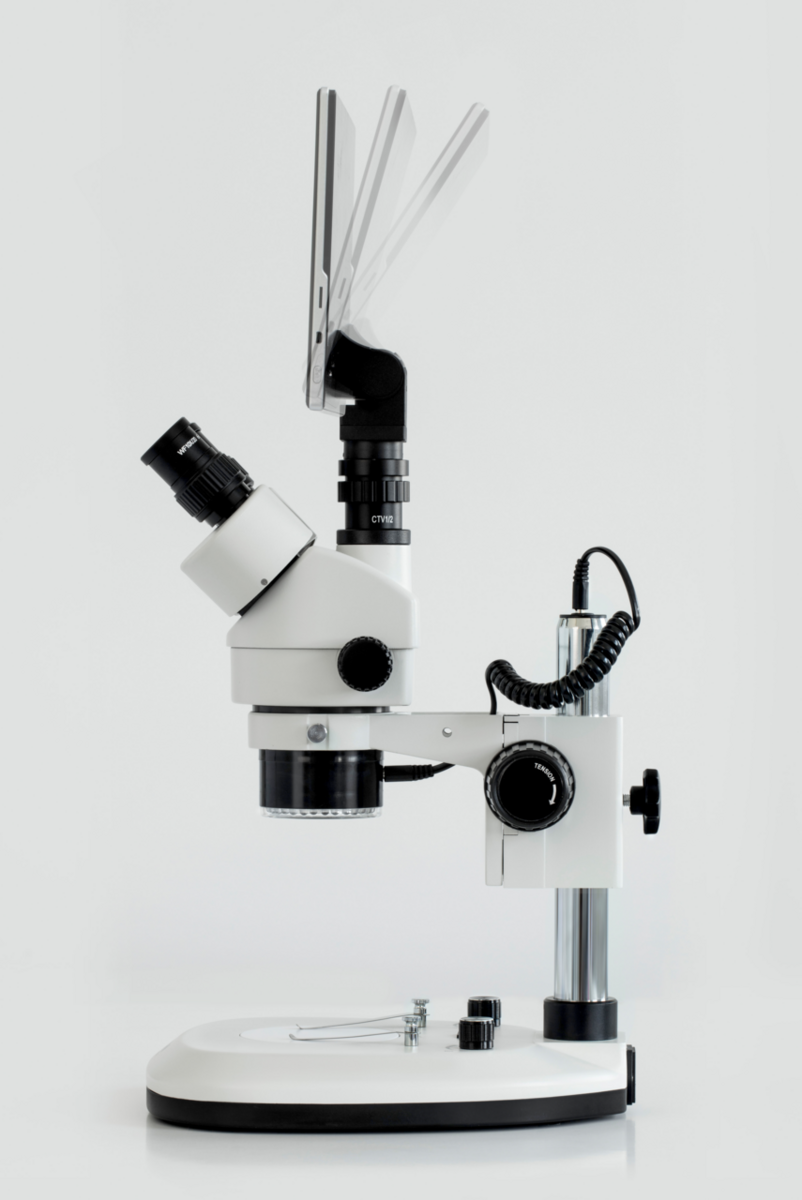

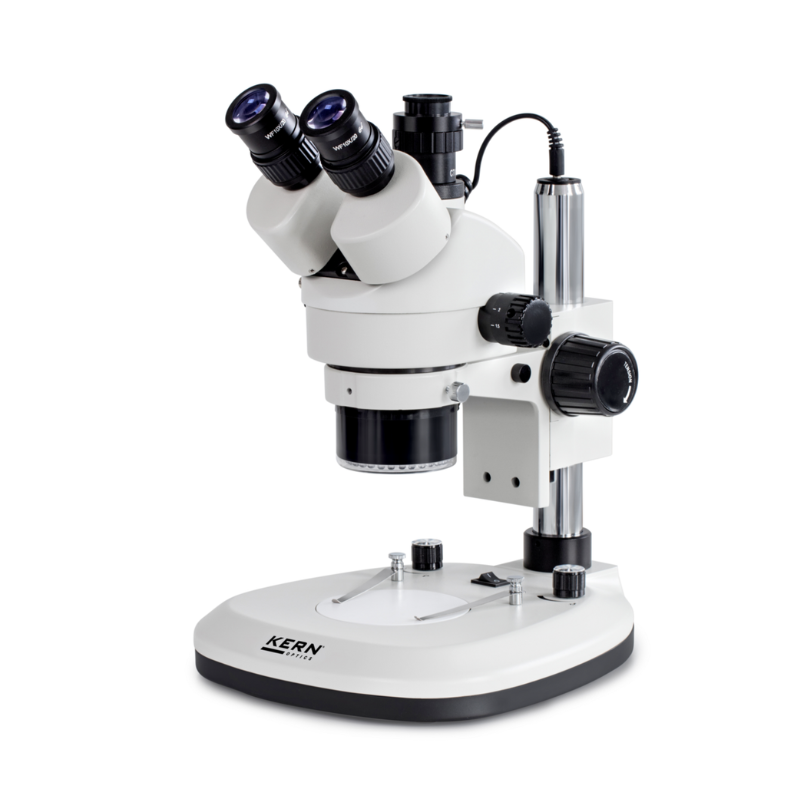

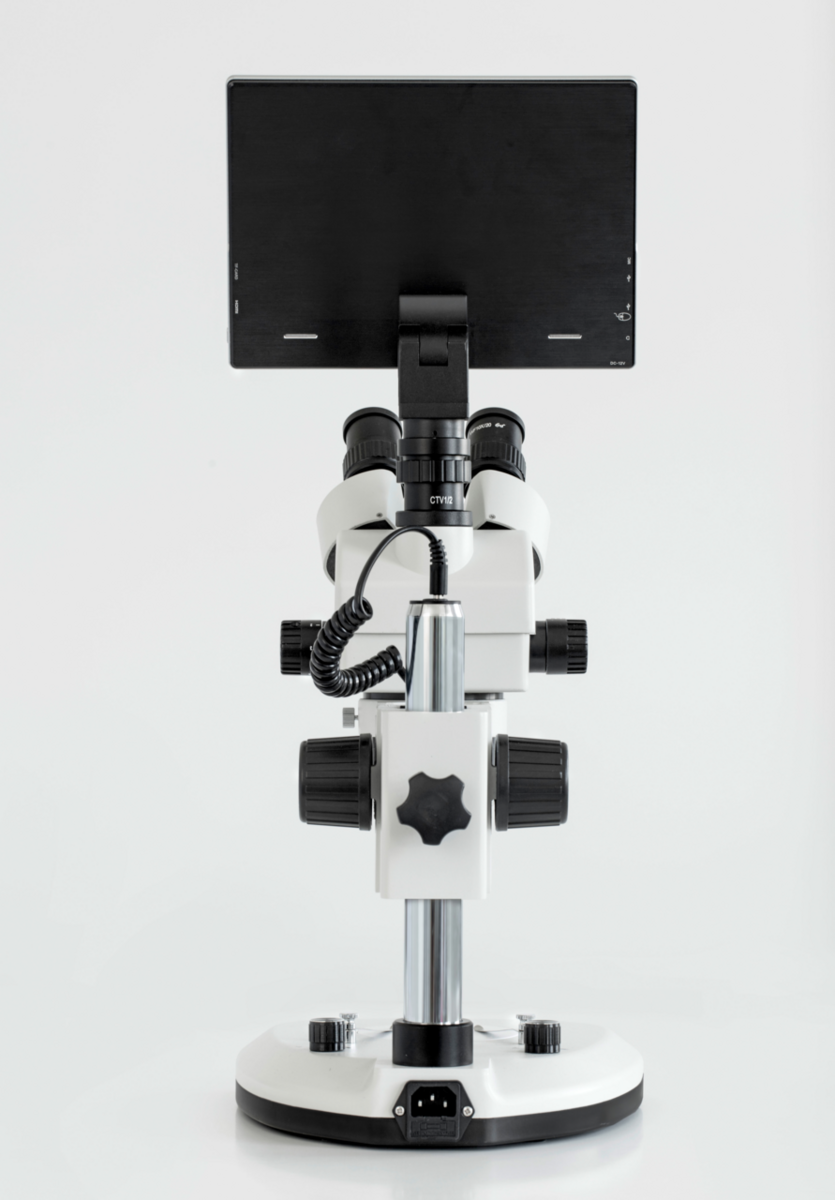

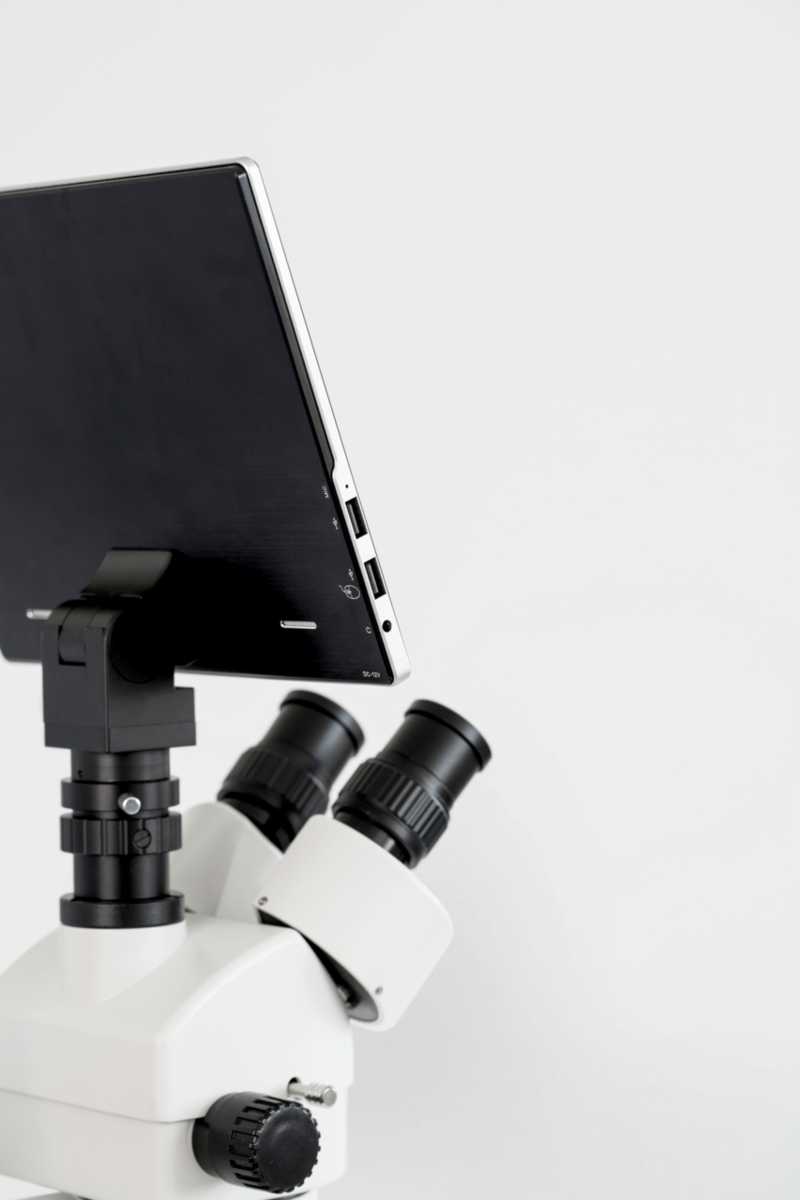

Stereo Zoom Microscope, Trinocular, Greenough. 0,7-4,5×. HWF 10×20. 3W LED, KERN
Preces kods:
OZL466
Elastīgais, pieejamais universālais risinājums ar tālummaiņas funkciju skolām, apmācību uzņēmumiem, inspekcijas iestādēm un laboratorijām
Pieejams pēc iepriekšēja pasūtījuma
Piegādes laiks: 2-4 nedēļas
Pievienojiet vēl produktus par 90,00€, lai saņemtu BEZMAKSAS DPD un SMARTPOSTI piegādi ar pakomātu!
Attiecas uz Baltijas valstīm, Somiju un Zviedriju.
970,00€ Cena bez PVN 782,26€
Apraksts
- The products in the KERN OZL-46 series are stereo zoom microscopes, which will impress you with their easy handling, flexibility as well as their stability and economical price.

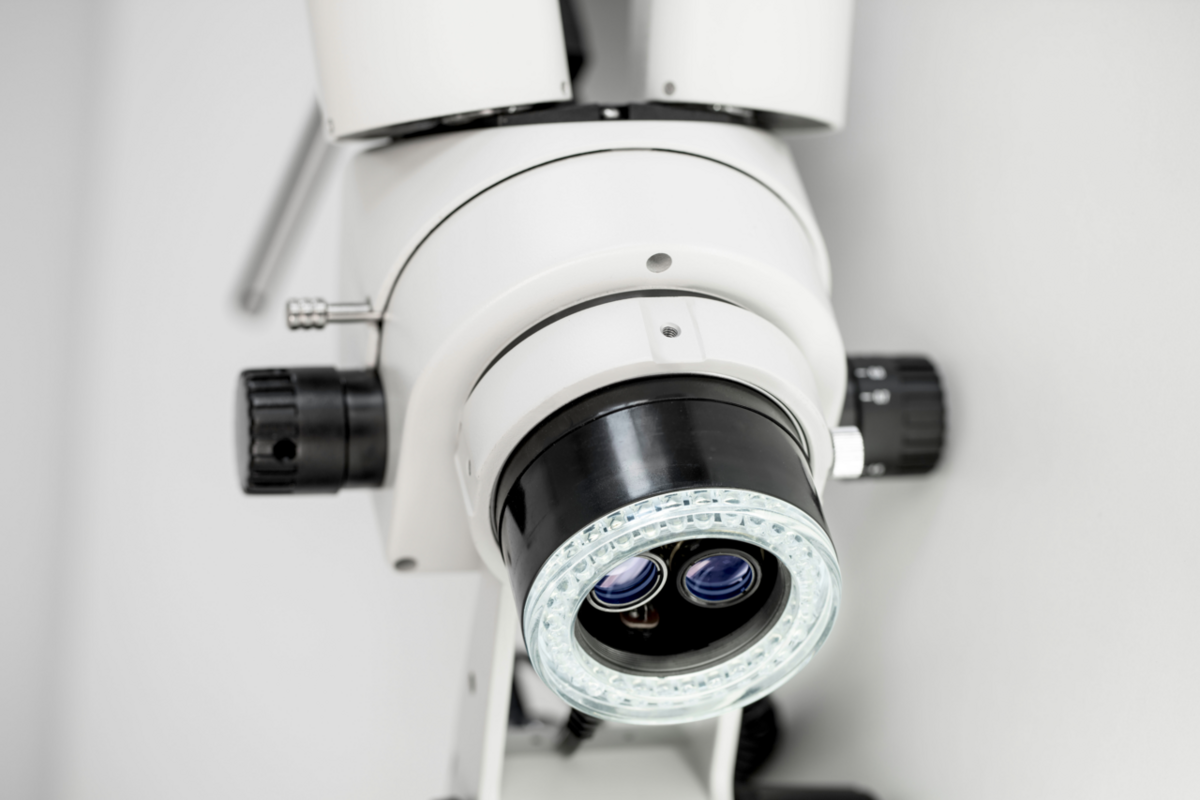

- The LED incident and transmitted illumination included as standard guarantees the very best illumination of your sample
- As well as excellent optical characteristics and their large working surface, these models offer the highest level of comfort in this class – ideal for training companies, workshops as well as assembly and repair workstations, e.g. in the electronics industry.
- NEW: Zoom wheel with integrated click stop for precise and reproducible selection of defined magnification levels
- NEW: 50:50 beam path distribution for simultaneous use of eyepieces and camera, ideal for documentation, live image transfer and precise inspection and soldering work
- The pillar stand offers you the highest level of flexibility and the freedom to remove the microscope head and to integrate it into other modular systems, for example into a universal stand
- A large selection of eyepieces, external illumination units as well as auxiliary objectives are available as accessories
- A protective dust cover, eye cups, as well as multi-lingual user instructions are included in the scope of delivery
Please note for your order

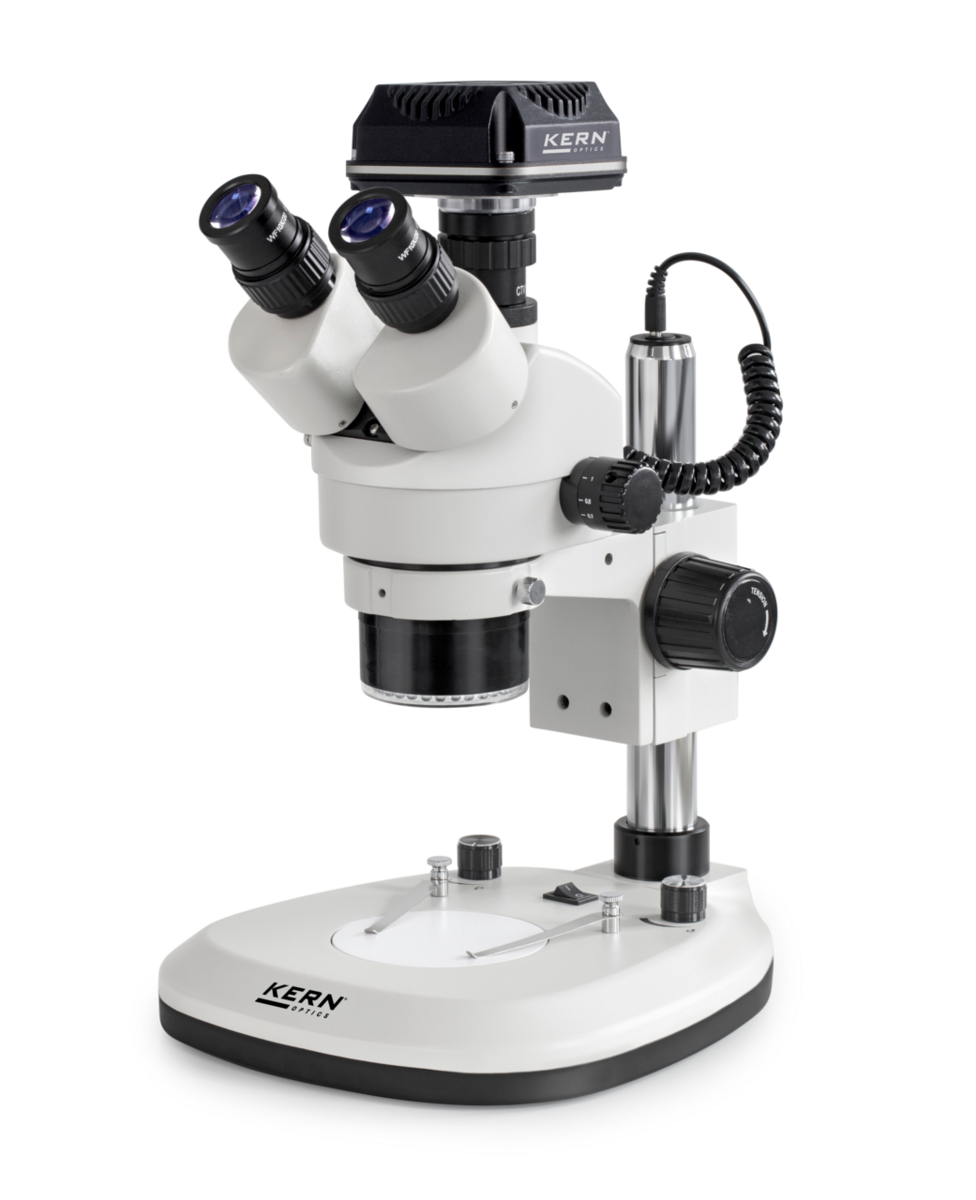

- A C-mount adapter is required to connect a camera (see accessories)
| Optical system | Greenough |
| Tube type | Trinocular |
| Ocular magnifications | 10x |
| Ocular visual field | 20 mm |
| Magnification ratio | 6,4:1 |
| Click-Stop-Zoom | Yes |
| Zoom [Min] | 0,7x |
| Zoom [Max] | 4,5x |
| Light distribution | 50:50 |
| Illuminance | Reflected light, Transmitted light |
| Illumination intensity transmitted light | 3 W |
| Illumination type transmitted light | LED |
| Illumination intensity incident light | 3 W |
| Illumination type incident light | LED |
| Focusing mechanism | coarse drive |
| Working distance | 105 mm |
| Sample height [Max] | 140 mm |
| Stand type | pillar |
| Dimension (W×D×H) | 300×240×420 mm |
| GTIN\/EAN numurs | 4045761501706 |
Main fields of application / Primary application areas
- in vitro fertilisation, detection of parasites, zoology and botany, tissue preparation, section, Quality control
Applications and samples
- Samples with focus on three-dimesnional impression (depth, thickness), e.g. insects, seeds, circuit boards, components
Papildu informācija
| Svars | 6.000 kg |
|---|---|
| Izmēri | 300 × 240 × 420 mm |
